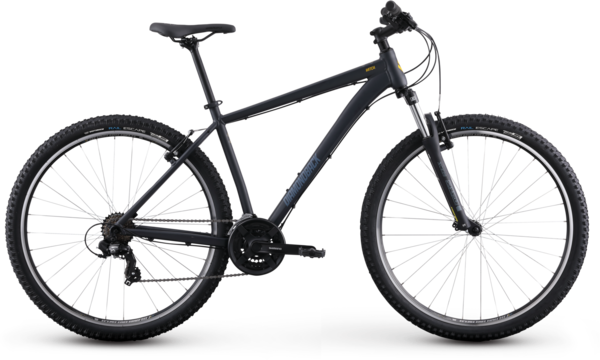

Diamondback Hatch 1 Hard Tail MTB (blem) - 2022

Diamondback Hatch 1 Hard Tail MTB (blem)
Please select options


Get your start on the new Hatch 1 hardtail trail bike.

At home on dirt, gravel, and pavement, the Hatch 1 keeps the adventure going when it's time to explore the path less travelled. A 100mm travel fork and grippy 2.25-inch wide knobby tires help you easily roll over bumps and potholes with confidence. With 21 gear combinations at your fingertips, you'll always find a comfortable pedaling pace, and Tektro V-brakes will keep your speed under control. Introduce yourself to the adventure a hardtail can bring without breaking the bank.

Wheel Size
X-Small – Small: 27.5-inch
Medium – X-Large: 29-inch

Frame Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
Fork SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, for post mount V-brakes
Rims Aluminum MTB DBM-2 Double Wall, 32 hole
Hubs Front: Formula OV-31F Quick Release
Rear: Formula OV-31R Quick Release
Spokes Steel J-Bend
Tires Vee Tire Co. Rubber Rail Escape (27.5" - XS,S) (29" - M,L,XL)
Bottom Bracket Sealed Cartridge Bearing
Crankset Shimano Tourney TY301, 42/34/24t
Shifters Shimano EF-41 3x7 Speed EZ-Fire Shifter
Front Derailleur Shimano Tourney TY500, Dual Pull
Rear Derailleur Shimano Tourney TY300
Cassette/Freewheel Shimano MFTZ500 14-28 Tooth Freewheel
Chain KMX Z-7
Brakes Tektro 855AL V-Brake
Brake Levers Shimano EF41 with 2-finger Reach Adjustable lever
Handlebars Aluminum 31.8mm Bar, 25mm Rise
Tape/Grips MTB Grip
Stem Aluminum MTB 31.8mm Bar Bore Stem
Headset 1-1/8 Semi Integrated, Cartridge Bearing
Seatpost Aluminum 27.2 Post with 15mm Offset
Saddle MTB Saddle
Pedals Wellgo Plastic Body Platform
Accessories & Extras Rack, Fender, and Bottle Mounts

This bike is a factory second. It may have some cosmetic defects that do not affect the bike operation. Full factory new warranty. If the bike is shipped, we recommend having the bike built by a professional bike shop. When purchased at the shop, this bike is fully built, tested, and warranted locally. All new bikes come with a one-year manufacturer's warranty. The delivered price on new bikes include shipping to our store, warranty at the shop, assembly, 30-day checkup, and a one-year health check/adjustment. See Terms and Conditions for more details. Bicycle specifications are subject to change without notice. Special pricing only applies to bikes in stock.

Part Numbers

Option MPN Store SKU
Medium 210000020317 210000020317
