Haro Daley Alloy 2 FS MTB

Haro Daley Alloy 2 FS MTB

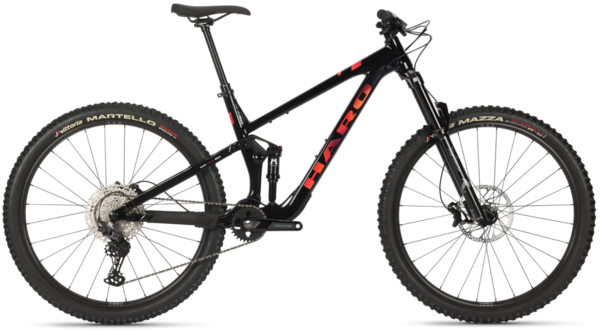

  • Color: Black / Amber

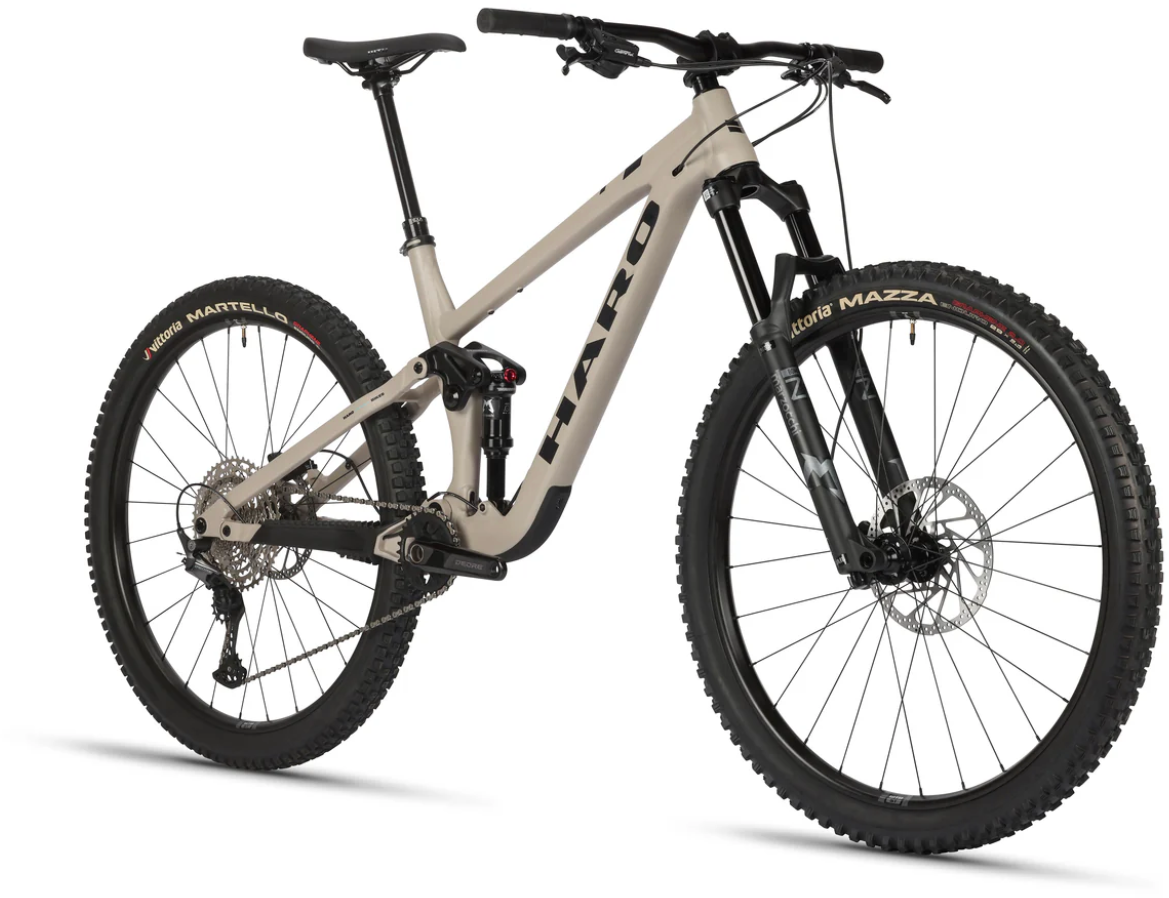

  • Color: Stone Grey
$2,699.99
Color:
Size: Select size
Please select options Unavailable

Details

Named after one of our go-to trail networks, the Daley is our all-new, all-mountain 29er, ready for the climb & grind. Starting with our exclusive aluminum frame design, the Daley is built on a trusted suspension platform with 150/140mm travel, custom tuned for each spec level. This is our go-to all mountain machine: Playful on the trails, with maximum traction through the turns and on the climbs. Ready to launch the jumps, turn and burn. No gimmicks, nothing wacky, just everything you need for days in the dirt.

  • Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
  • Marzocchi Inline R, 140mm travel shock
  • Marzocchi Bomber Z2 fork. 150mm travel with rail/sweep adjust, Kabolt 110 x 15mm thru axle, 44mm offset
  • Shimano Deore M6100 drivetrain
  • Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
  • WTB ST 30, TCS 2.0 pinned double-wall alloy rims, 28H
  • Tektro Gemini SL 4-piston hydraulic disc brakes, with 2.3mm rotors, 203mm front, 180mm rear
  • WTB Wavelength 130mm lock-on grips
  • Kind Shock I900 dropper post, size-specific
  • Includes tubeless valves and sealant
FRAMESET
Frame Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 15mm thru-axle, 44mm offset, 150mm travel
Frame Shock Marzocchi Inline R, 140mm travel
Colors Trans Black / Amber, Matte Stone Grey
Weight 38.2 lbs 17.29 kg, (L)
DRIVETRAIN
Cranks Shimano Deore FC-M6120-1, 165mm 30T, CL:55
Pedals N/A
Chain KMC X12
Bottom Bracket Shimano BB-MT501 BSA 68/73mm
Front Derailleur N/A
Rear Derailleur Shimano Deore 12-speed, RD-M6100 Shadow Plus
Derailleur Shifter Shimano Deore Rapid Fire, SL-M6100-R
Freewheel/Cassette Shimano 12-speed CS-M6100-12, Hyper Glide Plus, 10-51T
WHEELS
Tires Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims WTB ST 30, TCS 2.0 pinned double-wall alloy, 28H
Hubs Alloy CNC 4 sealed bearings, 110x15 front axle, 148x12 rear axle
BRAKING SYSTEM
Brakes Tektro Gemini SL 4-piston hydraulic disc, with 2.3mm rotors, 203mm front rotor, 180mm rear rotor
Brake Levers Tektro Gemini
OTHER COMPONENTS
Grips/Tape WTB Wavelength 130mm lock-on
Handlebar Alloy 6061-T6 Riser bar, 800mm wide, 20mm rise, 6° back sweep, 4° upsweep
Stem Satori Ursa, 31.8 ID, 35mm reach, 0° rise
Headset FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube
Saddle WTB Volt Medium, w/steel rails
Seat Post Kind Shock I900 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp 3D Forged 6061 aluminum 38.9mm ID
Extras Includes tubeless valves and sealant
SIZESMLXL
Seat Tube (C-T) 361mm 410mm 448mm 473mm
Top Tube (Effective) 553mm 590mm 617mm 644mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle 78° 78° 78° 78°
Chainstay Length 428mm 445mm 445mm 445mm
BB Drop 23mm 33mm 33mm 33mm
Wheelbase 1172mm 1237mm 1266mm 1296mm
Head Tube Length 90mm 100mm 110mm 120mm
Standover 691mm 685mm 705mm 705mm
Stack Height 579mm 610mm 619mm 628mm
Reach 430mm 460mm 485mm 510mm
Axle to Crown 544mm 561mm 561mm 561mm
Fork Offset 44mm 44mm 44mm 44mm
Stem Length
Bar Width
Crank Length
Wheel Size 27.5 29 29 29
SizeInchesCM
S 5" - 5' 6" 153 - 166
M 5' 4" - 5' 11" 162 - 180
L 5' 9"- 6' 2" 175 - 187
XL 6' - 6' 5" 180 - 196

Part Numbers

Option UPC Store SKU
Black / Amber / Small 691840152716
Black / Amber / Medium 691840152723 210000025918
Black / Amber / Large 691840152730 210000025920
Black / Amber / X-Large 691840152747
Stone Grey / Small 691840152754
Stone Grey / Medium 691840152761 210000025922
Stone Grey / Large 691840152778 210000025924
Stone Grey / X-Large 691840152785
