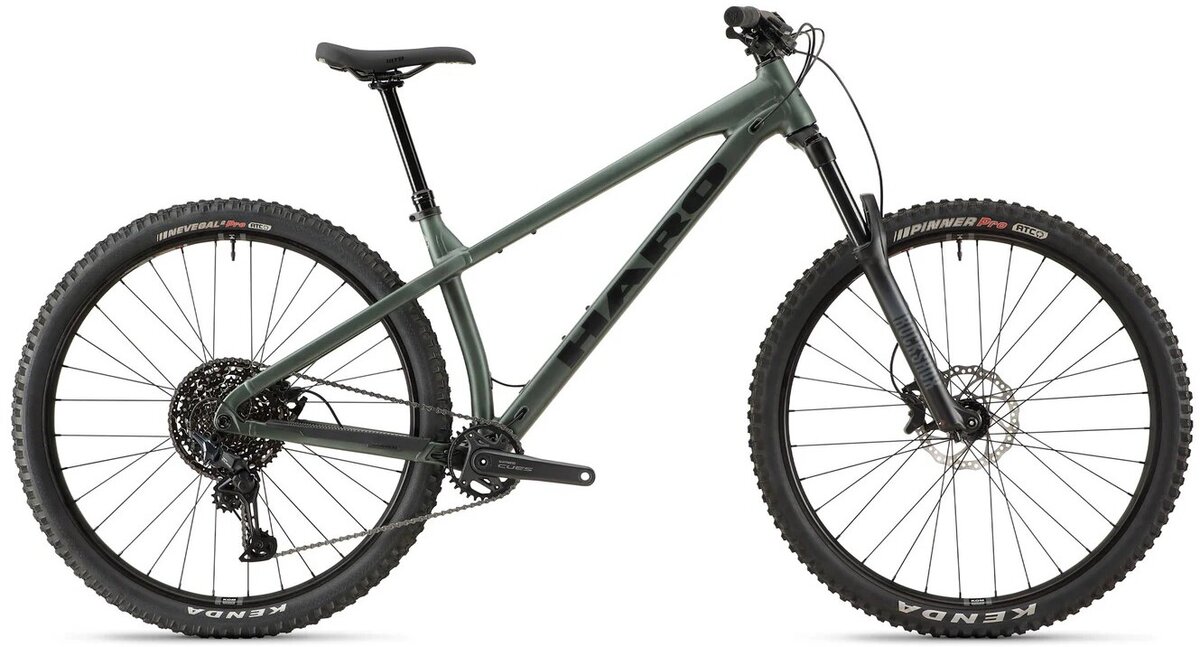

Simple, slack and full-on fun. The Saguaro 29-inch hardtail is purpose built to be the most versatile bike in your quiver. Make no mistake, this hardcore hardtail is no XC bike. With an aggressive geometry and slack head angle that is more inclined to hauling down hills than pedaling up them, the Saguaro is stretched out in the front and shortened up in the back for a stable ride at speed. As one of our testers put it: "It makes mellow trails more fun". Hit the jumps, hammer the single track and rip the turns. The Saguaro is everything you need, and nothing you don't. All three models of the Saguaro bike collection feature our heat-treated 6061 aluminum Saguaro frame with three spec levels to fit your needs (and budget). The most affordable of the Saguaro family. The Saguaro 3 features the same top-shelf aluminum frame set as level 1 and 2. We dialed back the spec a little to bring the cost down, but there's no compromise in performance: RockShox TK35 140mm travel fork, Shimano Cues 11-speed gearing, WTB rims, sealed hubs, tubeless tires and a TranzX dropper post--everything to handle business in style.
- Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. Tapered head tube.
- Modern geometry: 64.5 degree head tube angle with a longer front triangle and shorter rear end.
- RockShox TK35 Silver. 140mm travel fork.
- WTB KOM Team 32 hole rims, with CNC-ed, sealed 15mm thru-axle front and six-sealed bearing, 12mm thru-axle (rear) hubs.
- Shimano Cues 11-speed Shadow Plus transmission
- Tires: Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4"ATC (rear). Sealant included. Small size features 27 X 2.5" rear "mullet" configuration.
- TranzX dropper post. Size-specific per frame size.
- Tektro Gemini HD-M530 hydraulic brakes. 4-piston front, 2-piston rear. 180mm rotors.
- Full 29er. Small size features "mullet" wheel configuration with 29" front, 27.5" rear
FRAMESET | |
---|---|
Frame | Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. UDH derailleur hanger. Tapered head tube. Frame will accommodate up to 2.6" tires. |
Fork | RockShox TK 35 Silver 140mm |
Colors | Metallic Green, Matte Mauve |
DRIVETRAIN | |
Cranks | Shimano Cues 2-piece. 170mm. 32T chainring |
Pedals | |
Rear Derailleur | Shimano Cues 11-speed |
Derailleur Shifter | Shimano Cues 11-speed |
Freewheel/Cassette | Shimano Cues 11-speed, 11-50T |
WHEELS | |
Tires | Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4" ATC (rear). Sealant included. Small size features 27.5 X 2.4" rear "mullet" configuration. |
Wheels/Rims | WTB KOM Team I 30, TCS 2.0, sleeved. 32H |
Front Hub | Fully sealed CNC-machined alloy 110x15mm boost thru-axle, 6-bolt disc |
Rear Hub | Fully sealed CNC-machined alloy 148x12mm boost thru-axle, 3-pawl cassette, 6-bolt disc |
BRAKING SYSTEM | |
Brakes | Front: Tektro HD-M530-F, 4-piston hydraulic disc,180mm rotor /Rear: Tektro HD-M530-R, 2-piston hydraulic disc, 180mm rotor |
OTHER COMPONENTS | |
Grips/Tape | WTB Wavelength lock-on |
Handlebar | Haro Alloy 800mm wide, 20mm rise, 6° back sweep, 4° up sweep |
Stem | Satori Ursa 35mm reach, 0° rise |
Headset | FSA Orbit sealed, tapered 1-1/8" - 1-1/5" |
Saddle | WTB Volt Medium chromoly rails. PU Leather. Flex-tuned. |
Seat Post | TranzX JD-YSI34 dropper. Small 150mm, Medium 170mm, Large/X-large 200mm |
Extras | Tubeless tire sealant included. |
SIZE | S | M | L | XL |
---|---|---|---|---|
Seat Tube (C-T) | 350mm | 405mm | 430mm | 480mm |
Top Tube (Effective) | 574.2mm | 601.2mm | 633.4mm | 650.7mm |
Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
Seat Tube Angle | 76° | 76.5° | 76.5° | 76.5° |
Chainstay Length | 418mm | 430mm | 435mm | 435mm |
BB Drop | 50mm | 70mm | 70mm | 70mm |
Wheelbase | 1156.6mm | 1195.1mm | 1234.4mm | 1253.7mm |
Head Tube Length | 100mm | 110mm | 120mm | 130mm |
Standover | 694mm | 706mm | 709mm | 709mm |
Stack Height | 642.3mm | 650.8mm | 659.9mm | 668.9mm |
Reach | 420mm | 445mm | 475mm | 490mm |
Axle to Crown | ||||
Fork Offset | 44mm | 44mm | 44mm | 44mm |
Stem Length | ||||
Bar Width | ||||
Crank Length | ||||
Wheel Size | 29" Front / 27.5" Re | 29" | 29" | 29" |
Size | Inches | CM |
---|---|---|
S | 5" - 5' 6" | 153 - 166 |
M | 5' 4" - 5' 11" | 162 - 180 |
L | 5' 9"- 6' 2" | 175 - 187 |
XL | 6' - 6' 5" | 180 - 196 |
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Mauve / Small | |||
Mauve / Medium | |||
Mauve / Large | |||
Mauve / X-Large | |||
Metallic Green / Small | 691840144346 | 14434 | 210000025661 |
Metallic Green / Medium | 691840144353 | 14435 | 210000024466 |
Metallic Green / Large | 691840144360 | 14436 | 210000024468 |
Metallic Green / X-Large | 691840144377 | 14437 | 210000025663 |
