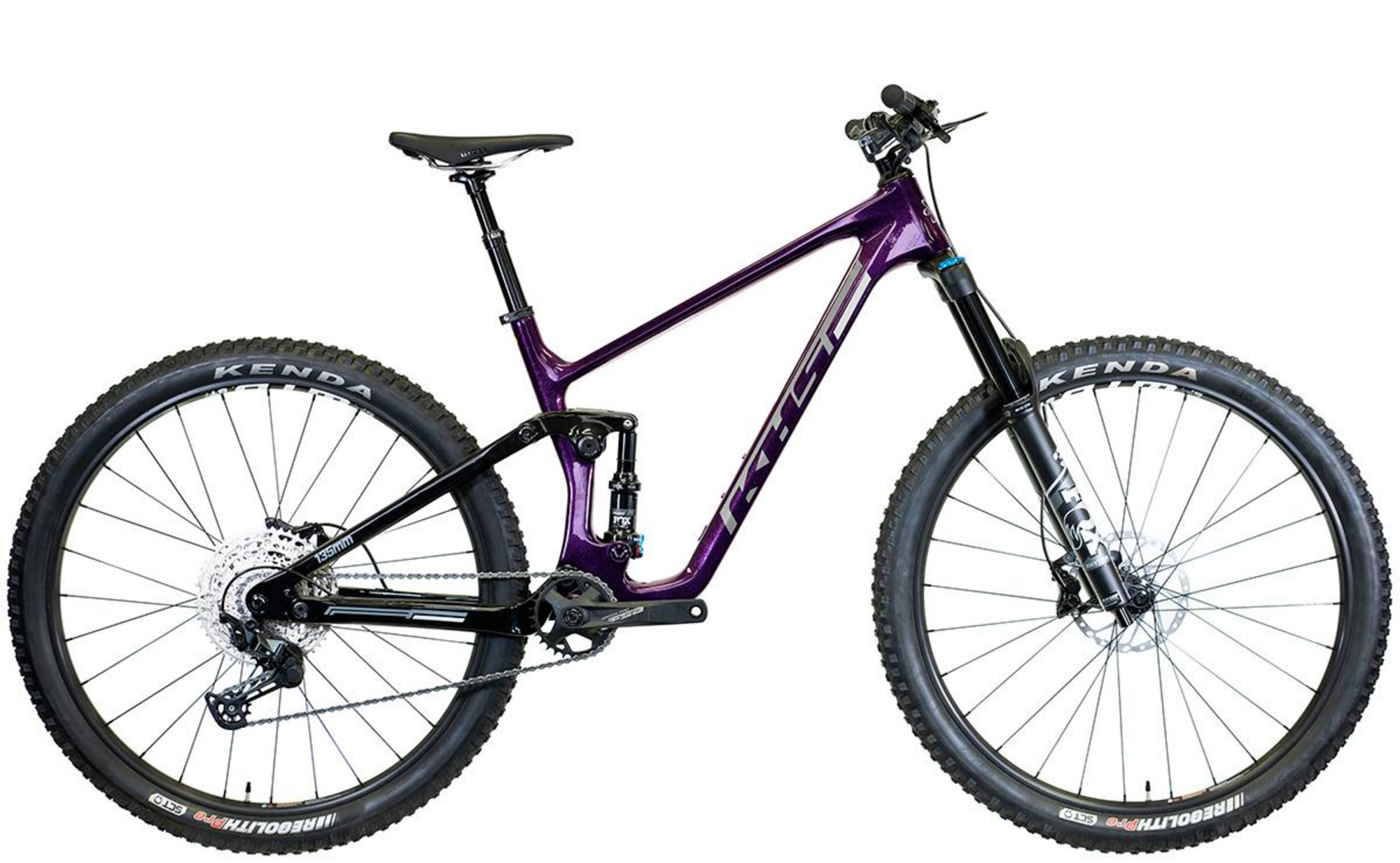

KHS 6600

KHS 6600
$5,059.00
Color: Raisin
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
Sorry, this item is currently not available online. Please check back or call 480-275-5818 for availability.

Details

- 12 Speed
- 4-Bar Horst Link Carbon frame
- Fox Float fork & shock
- Shimano SLX rear derailleur
- Shimano 10-51T cassette
- Shimano 4-Piston hydraulic disc brakes
- WTB tubeless-ready wheels
- Kind Shock dropper post

Wheel size:
- Size: Small: 27.5-inch
- Sizes: Medium – X-Large: 29-inch

Specs

Pedals Sold Separately
Fork FOX Float 36, 29 Std/27.5+ Evol Air, Rhythm, 150mm, Grip Sweep Adjust, 1-1/8~1.5 Taper, 15mm x 110 QR Boost
Hubs Front: Shimano HB-MT410, CenterLock Disc, 15mm x 110mm, Boost Rear: Shimano FH-MT410-B Disc Cassette, 12 x 148mm, Boost
Rims WTB ST=S:i35, M-XL:i29 TCS, Disc, Double Wall, 28H, Tubeless-Ready
Stem FSA Grid 3D Forged, 35mm x 50mm
Chain Shimano CN-M6100
Frame MSD Full Carbon 4-Bar Horst Link, 29/650B+, 135mm, 1.5 Taper, 12 x 148 Boost Rear Axle, w/Replaceable Derailleur Hanger
Tires Kenda Regolith Pro, S:27.5 x 2.6", M-XL:29 x 2.4", 120TPI, Folding, Tubeless-Ready
Brakes Shimano MT420 4-Piston Hydraulic Disc, 203/180mm RT64 CenterLock Rotors
Saddle WTB High Tail, CrMo Rail
Spokes 14/15G Double Butted Stainless, Black w/Aluminum Nipples, 28x28
Headset FSA No. 57/52, Zero Stack, 1-1/8"~1.5
Crankset FSA Comet, 2-pc., 30T Megatooth, Boost, S:170, M-XL:175
Seatpost Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adjust, 30.9mm, S: 100x345, M-XL: 125x395
Shifters Shimano SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV
Handlebars FSA Grid 35mm, 800mm x 20mm
Rear Shock FOX Float DPS, Trunnion Performance, 3-Pos, Evol w/LV Eyelet, 185x55
Tape/Grips Q2 Lock-on
Brake Levers Shimano MT420 4-Piston Hydraulic Disc, 203/180mm, RT64 CenterLock Rotors
Bottom Bracket FSA MegaExo Outboard Cartridge Bearing
Rear Derailleur Shimano SLX, RD-M7100
Cassette/Freewheel Shimano CS-M6100, 10-51T, 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Raisin / Small / 27.5-inch 756928948077 931740000
Raisin / Medium / 29-inch 756928948084 931740001
Raisin / Large / 29-inch 756928948091 931740002
Raisin / X-Large / 29-inch 756928948107 931740003
