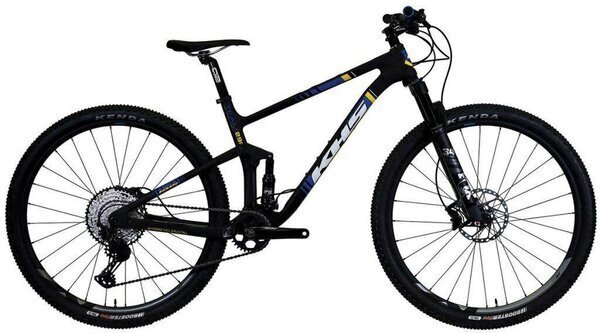

KHS Team 29 FS XC Race MTB *Featured*

KHS Team 29 FS XC Race MTB *Featured*
$2,299.00
$5,499.00
Size: Select size
Please select options Unavailable

Details

KHS Bicycles Inc. was founded in 1974 as an American-based company distributing the KHS brand of bicycles. Its mission is to design, manufacture, and distribute moderately priced, high-quality bicycles and accessories. Since then, KHS has grown into a brand respected for quality, value, and integrity, distributed in more than 30 countries worldwide. KHS Bicycles Inc. manufactures full lines of mountain, road, and touring bicycles, as well as comfort tandems and cruisers. In addition, it markets BMX, freestyle, and dirt-jumping bicycles to the juvenile and youth markets under the brand name Free Agent.

The Team 29 is the perfect blend of quality technology using 4-bar Horst link rear suspension, coupled to a FOX Float DPS, Performance Elite, 2-Pos Remote, Evol shock, combined with a FOX Float 34 Step Cast, 29 Std/27.5+, Evol Air, Performance, 100mm fork and a tubeless-ready setup. Shimano M6100, 180/160, brakes provide ample stopping power. It is all rounded out with a Shimano SLX 12-speed shifter.

All new, in the box, and covered by the full manufacturer's warranty. Some assembly is required, and we recommend a professional bike shop build for the best results. See: https://www.archersbikes.com/faq/bicycle-assembly-faqs-pg308.htm

Frame

29” Full MSD Carbon, 4-bar Horst 100mm Travel, 1-1/8~ 1.5 Taper, 12x148mm Boost, 27.5 Plus Compatible

Rear Shock

FOX Float DPS, Performance Elite, 2-Pos Remote, Evol

Fork

FOX Float 34 Step Cast, 29 Std/27.5+, Evol Air, Performance, 100mm, Grip, 2-Pos Remote Lock Out, Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm X 110 QR Boost

Headset

FSA Orbit C-40-/48CF, N.42/48CF, 1-1/8”~1.5” Integrated, Carbon Cap

Rims

Shimano XT WH-M8100 12S, 29” Disc, Straight Pull, Tubeless- Ready

Hubs, Front

Shimano XT WH-M8100, 15mm x 110 Boost

Hubs, Rear

Shimano XT WH-M8100, 12mm x 148 Boost

Tires

Kenda Booster Pro, 120TPI Folding, Tubeless-Ready, 29x2.2''

Spokes

Shimano XT WH-M8100

Derailleur, Front

n/a

Derailleur, Rear

Shimano XT RD-M8100

Shifters

Shimano XT, SL-M8100, 12s, Trigger, Right Only, I-Spec II

Chain

Shimano CN-M7100

Crankset

Shimano XT M8100, 2-pc Hollowtech II, 32T, Boost, S:170, M-L:175

BB

FSA PF92, BB-CFM92

Cassette

Shimano CS-M7100, 10-51T, 12-Speed

Pedals

n/a

Seatpost

Q2 Carbon, 31.6mm

Saddle

WTB SL8 Med CrMo SL, 142mm

Handlebar

FSA SLK CSI, Low Riser, 760mm x 18mm, 31.8mm

Stem

FSA Afterburner, 3D Forged, CNC, 4-Bolt, 6D, 31.8mm, S:70mm, M-L:80mm

Grips

Q2 Lock-on

Brake Levers

Shimano M6100, Servo Wave, I-Spec EV

Brakes

Shimano M6100, Hydraulic Disc, Servo Wave, 180/160mm, Rotors= RT64 CenterLock

Color

Team Matte Black

Frame Size

S/15.5, M/17.5, L/19

Part Numbers

Option UPC MPN Store SKU
S/15.5 756928937675 921790000 210000027538
M/17.5 756928937682 921790001 210000027540
L/19 756928937699 921790002 210000027542
