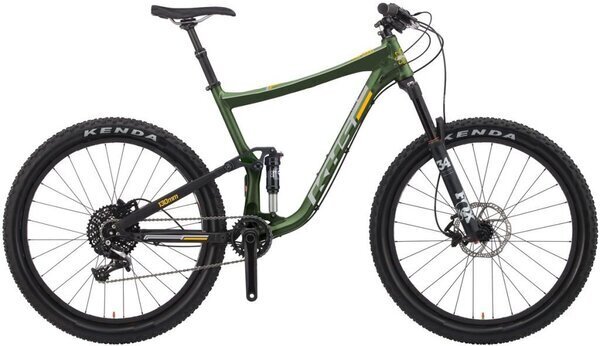

KHS Trail 6500 FS MTB *Featured*
Details
KHS Bicycles Inc. was founded in 1974 as an American-based company distributing the KHS brand of bicycles. Its mission is to design, manufacture, and distribute moderately priced, high-quality bicycles and accessories. Since then, KHS has grown into a brand respected for quality, value, and integrity, distributed in more than 30 countries worldwide. KHS Bicycles Inc. manufactures full lines of mountain, road, and touring bicycles, as well as comfort tandems and cruisers. In addition, it markets BMX, freestyle, and dirt-jumping bicycles to the juvenile and youth markets under the brand name Free Agent.
The 6500 is the perfect blend of quality technology using 4-bar Horst link rear suspension, coupled to an X-Fusion 02 Pro RL Air shock, combined with a FOX Float 34, 29 Evol Air, Rhythm, 140mm fork and a tubeless-ready setup. Shimano MT-40, 180/160, brakes provide ample stopping power. It is all rounded out with a Shimano SLX 12-speed shifter.
All new, in the box, and covered by the full manufacturer's warranty. Some assembly is required, and we recommend a professional bike shop build for the best results. See: https://www.archersbikes.com/faq/bicycle-assembly-faqs-pg308.htm
| Frame |
4-Bar Horst Link 29/650B+ 130mm, 6061 Aluminum w/Custom Formed Double Butted T/T & D/T, 1.5 Taper, 12 x 148 Rear Axle, w/Replaceable Derailleur Hanger, Internal Cable |
| Rear Shock |
X-Fusion 02 Pro RL, Air, Ext Rebound, Lock-Out |
| Fork |
FOX Float 34, 29 Evol Air, Rhythm, 140mm, Grip Sweep Adj., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm x 110 QR Boost |
| Headset |
FSA Orbit 1.5E, Zero Stack, 1-1/8”~1.5 |
| Rims |
WTB ST=S:i35, M-XL:i29 TCS, Disc, Double Wall, 32H, Tubeless-Ready |
| Hubs, Front |
Shimano Deore HB-MT410, Center Lock Disc, 15mm x 110mm, Boost |
| Hubs, Rear |
Shimano Deore FH-MT410-B Disc Cassette, 12 x 148mm, Boost |
| Tires |
Kenda Regolith Pro, S:27.5x2.6, M-XL:29x2.4FT, 120 TPI Folding, Tubeless-Ready |
| Spokes |
14/15G Double Butted Stainless, Black w/Aluminum Nipples, 28x28 |
| Derailleur, Front |
n/a |
| Derailleur, Rear |
Shimano SLX, RD-M7100 |
| Shifters |
Shimano SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV |
| Chain |
Shimano CN-M6100 |
| Crankset |
FSA Gamma Pro , 2 pc., 30T Megatooth, Boost, Mega EXO, S;170, M-XL:175 |
| BB |
FSA Mega EXO, Outboard Bearing |
| Cassette |
Shimano CS-M6100, 10-51T, 12-Speed |
| Pedals |
n/a |
| Seatpost |
Kind Shock Exa-Form KSP-900-i, Integra w/Remote, Travel Adj, 31.6mm |
| Saddle |
WTB Volt Medium SL |
| Handlebar |
FSA Grid 35mm, 800mm x 20mm |
| Stem |
FSA Grid 3D Forged, 35mm |
| Grips |
Q2 Lock-on |
| Brake Levers |
Shimano M4100, I-Spec EV |
| Brakes |
Shimano MT420 4-Piston Hydraulic Disc,180/160mm Rotors= RT64 CenterLock |
| Color |
Matte Kale |
| Frame Size |
27.5+: S/15; 29”: M/16.5, L/18, XL/20 |
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| 27.5+: S/15 | 756928937521 | 921730000 | 210000027533 |
| 29” M/16.5 | 756928937538 | 921730001 | 210000027535 |
| 29" L/18 | 756928937545 | 921730002 | 210000027537 |
