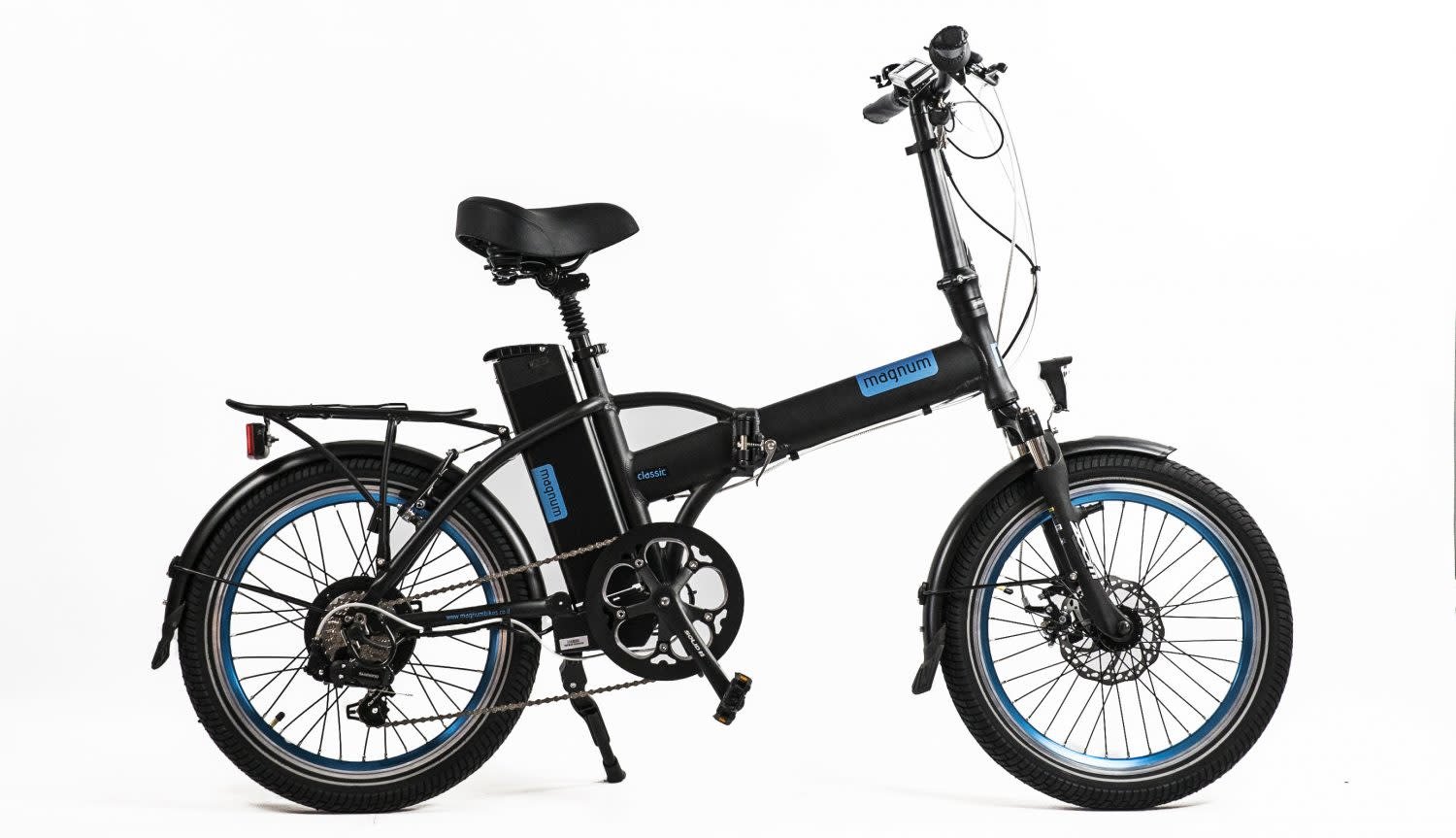

Magnum Bikes Classic Folding E-Bike

Magnum Bikes Classic Folding E-Bike
  • Classic Lo-Step
  • Type: Low Step
  • Classic II Hi-Step
  • Classic Lo-Step
  • Type: High Step
$1,499.99 - $1,599.99
Please select options
Sorry, this item is currently not available online. Please check back or call 480-275-5818 for availability.

Details

The Magnum Classic II High Step has a 48V 500W motor versus its previous generation the which has 36V 350W motor. The folding lightweight frame makes it easy to move and store.

Magnum Classic II 48v High Step
Body Position: Upright
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty: 1 Year Comprehensive
Max Load: 242lbs

ELECTRONIC DETAILS
Motor Type: 8fun Rear-mounted Geared Hub 48v 500w
Motor Output: 48v 500w
Battery Voltage / Amp Hours / Watt Hours:
48v / 13ah / 624wh / With Usb Port
Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time:
6.5 Hrs
Estimated Min And Max Range:
25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Display Type:
Das-kit C6, Fixed, Backlit, Monochrome Lcd
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only
Lights:
Independent Front Headlight, Independent Rear Light

BICYCLE DETAILS

Total Weight:
48lbs
Battery Weight:
7lbs
Frame Type:
Low Step / Folding
Frame Material:
6061 Aluminum Alloy
Fork Details:
Zoom Aria Suspension With Preload Adjustment, 40 Mm Travel
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
Shimano Tourney 7 Speed
Shifter Details:
Shimano Revoshift
Cranks:
Prowheel, 165mm, 52t With Aluminum Guide
Pedals:
Shimano, Plastic Folding
Stem:
Tool-free Adjustable Height (Three Locking Positions) / Folding, Flat
Brake Details:
Promax Mechanical Disc With 180mm Front Rotor And 160mm Rear Rotor
Grips:
Faux Leather
Saddle:
Selle Royal Wide Gel
Seatpost / Seatpost Dimensions:
Promax, 27.2 X 350mm
Fenders:
Front And Rear
Rims:
Double Walled
Tires:
Cst, Kevlar Lined, Reflective Sidewall Stripe, Schrader Valve
Wheel Size:
20? X 2.1?
Folded Dimensions:
14? X 33? X 33?

Videos

Classic Folding E-Bike

Folds up easily and fits right in your trunk

Part Numbers

Option MPN Store SKU
Black / Classic - 36v / Low Step 210000003690 3690
Black / Classic - 36v / High Step 210000006142
Black / Classic 2 - 48v / Low Step
Black / Classic 2 - 48v / High Step
White / Classic - 36v / Low Step 210000005975 5975
White / Classic - 36v / High Step 210000006144
White / Classic 2 - 48v / Low Step
