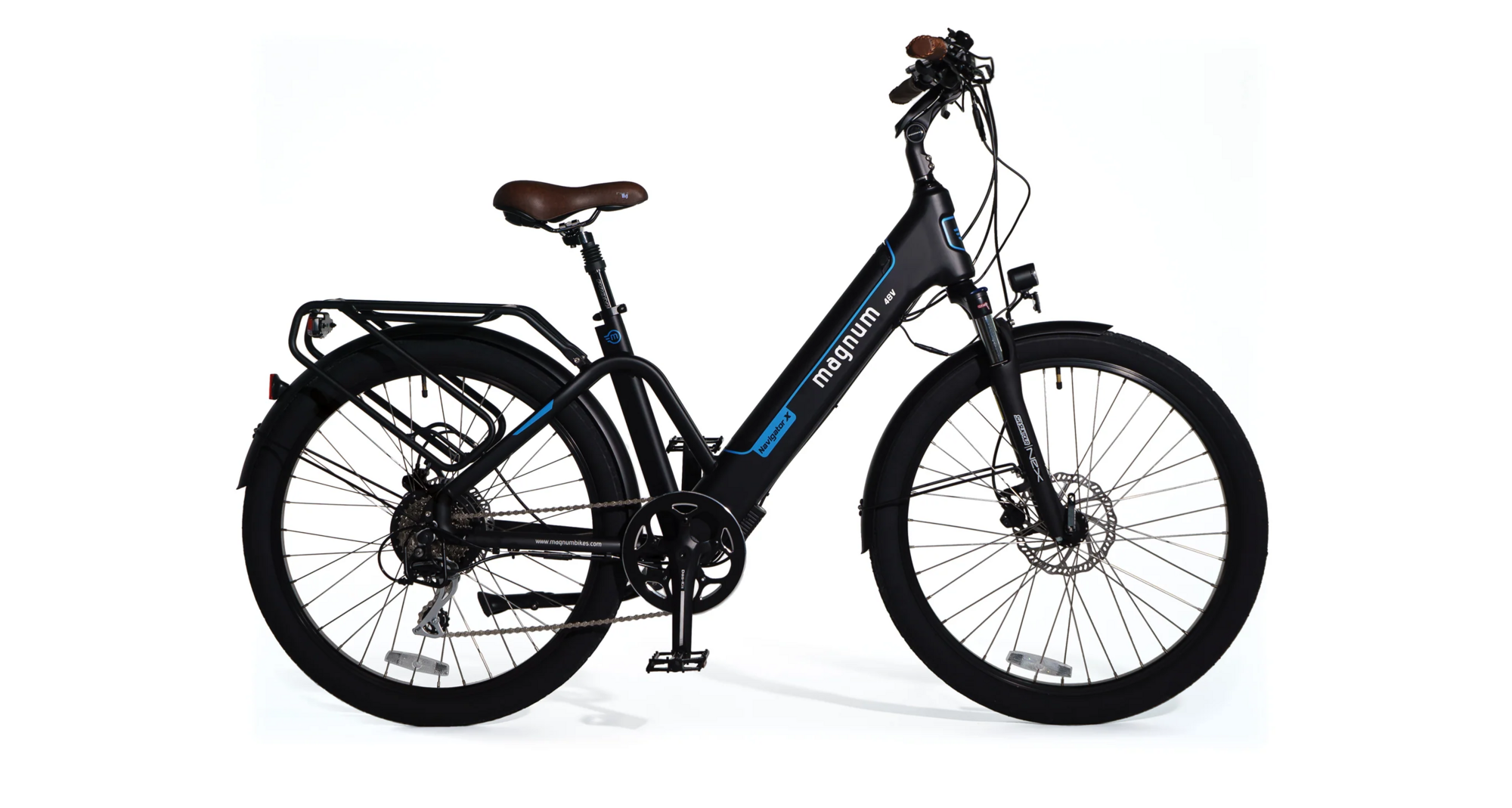

A beautifully designed, purpose built electric bike well suited to urban riding or commuting. Step-thru frame for easy mounting and dismounting. Powerful 500W 48V power system with a fully integrated battery.
- Category: Touring
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation
The heart of all Magnum bikes, the long-range battery blends in smoothly with the frame for a sleek look. It powers up to 50 miles depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
- 50 miles (80 Kilometers) Max Range
- 6.5 Hours Charge Time
SLEEK, LOW-STEP FRAME
Mount and dismount with ease.
The sleek, low-step frame is easy to mount and dismount, and is made of strong and lightweight aluminum.
|Seat Tube||17” (43 cm)|
|Reach||16.5” (42 cm)|
|Stand Over Height||21” (53 cm)|
|Virtual Top Tube Length||23.25” (59 cm)|
|Min Saddle Height||23” (58 cm)|
|Max Saddle Height||30” (76 cm)|
|Width||25.75” (65 cm)|
|Wheelbase||42.75” (108 cm)|
|Length||69” (175 cm)|
|Total Weight||59 lbs (26.75 kg)|
|Battery Weight||8 lbs|
|Recommended Minimum Rider Height||5’0”|
|Fork||SR Suntour NEX ATB 26”|
|Stem||Promax Tool-Free Adjustable|
|Tires||CST 26" x 2.25"|
|Brakes||Tektro Hydraulic Disc Brakes|
|Saddle||Selle Royal Brown Freeway|
|Crankset||Das-Kit Aluminum Alloy|
|Tape/Grips||Ergo Brown Faux Leather|
|Accessories & Extras||Rear rack, front and rear lights included, Bell: Included, Fenders: Front and Rear|
|Motor||Das-Kit Rear Gear Hub-Drive Motor 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.|
|Battery||48V, 12Ah, 576Wh|
|Charger||25-40miles per charge.|
|Controller/Display||Das-Kit C7, Backlit, Monochrome LCD. Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage.Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode.|
* Subject to change without notice.
|Black/Blue / Large / 26-inch||789554756051|
|Black/Silver / Large / 26-inch||789554755818|
|White/Blue / Large / 26-inch||745808932688|
