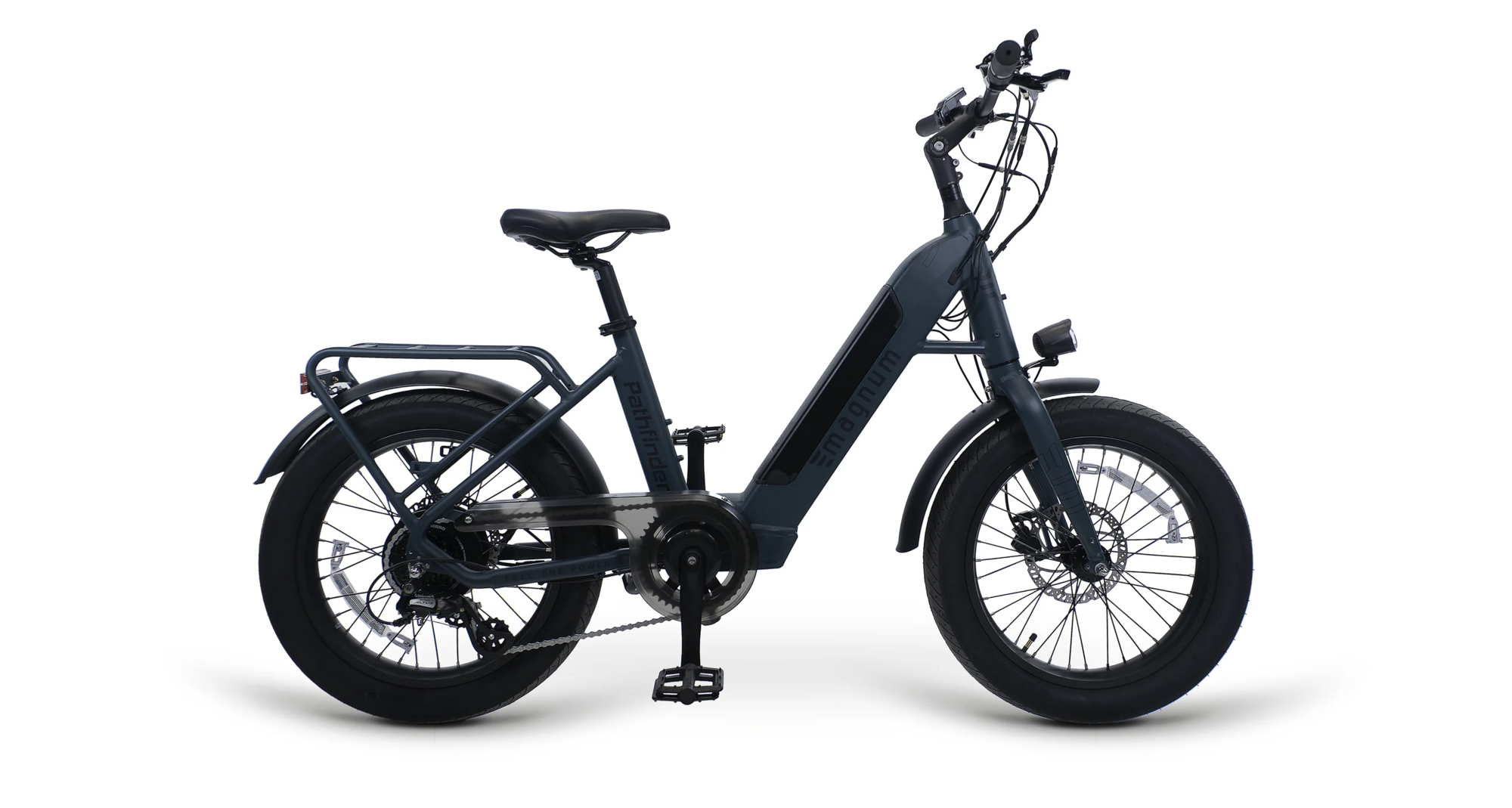

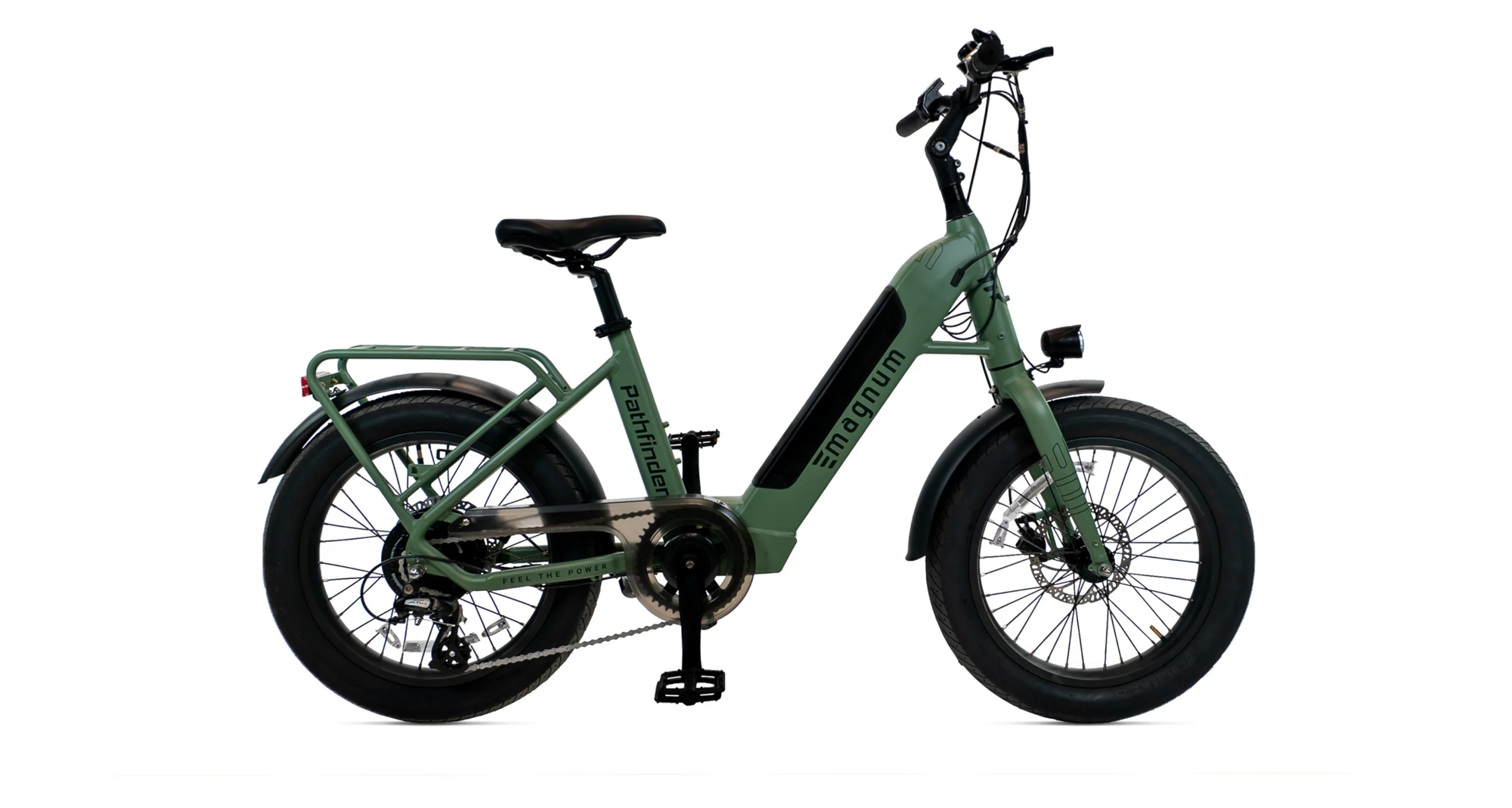

Work hard and play harder! The Magnum Pathfinder 350 is an e-bike that suits your active lifestyle. Whether it's used for recreation, exercise, commuting, or for the pure joy of power-assisted movement, the unisex Magnum Pathfinder 350 with its step-through frame will match your physique and your skills, and exceed your expectations.
- Category: Fat Tire
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation
The heart of the Magnum Pathfinder 350 is the integrated, long-range 36V / 13Ah / 468Wh battery that powers up to 40 mile-long rides, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
40 Miles (64 Kilometers) Max Range
6.5 Hours Charge Time
20? x 3" Fat Tire Wheels
The Pathfinder’s 3" fat tires absorb shock and heighten stability. They will improve handling over unexpected pot holes and uneven pavement, providing extra traction, control, and comfort.
|Seat Tube||15.75" (40 cm)|
|Reach||17" (43 cm)|
|Stand Over Height||16" (40 cm)|
|Virtual Top Tube Length||24" (61 cm)|
|Min Saddle Height||20.5" (52 cm)|
|Max Saddle Height||29.5" (75 cm)|
|Width||24" (61 cm)|
|Wheelbase||43" (109 cm)|
|Length||63.75" (162 cm)|
|Total Weight||59 lbs (26.75 kg)|
|Battery Weight||7.5 lbs (3.4 kg)|
|Recommended Minimum Rider Height||4’10"|
|Fork||Rigid Aluminum Alloy|
|Stem||Adjustable Aluminum Alloy|
|Tires||CST Big Boat 20" x 3"|
|Brakes||Mechanical Disc Brakes|
|Saddle||Velo Gel Comfort|
|Crankset||Aluminum Alloy, 44T, 165mm|
|Tape/Grips||Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle|
|Accessories & Extras||Rear rack, front and rear lights included, Includes Center-Mounted Single Side Adjustable Length Kickstand, Includes Bell, Accessory Mounts: Bottle Cage, Front Rack|
|Motor||Rear Gear Hub-Drive Motor 350W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.|
|Pedals||Wide Plastic Platform with Reflectors|
|Battery||36V, 13Ah, 468Wh|
|Charger||36V / 2A, 25-45miles per charge|
|Controller/Display||Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed. Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode.|
* Subject to change without notice.
|Ocean / Small / 20-inch||789554755603|
|Forest / Small / 20-inch||789554755573|
|Sand / Small / 20-inch||789554755580|
|Snow / Small / 20-inch||789554755597|
