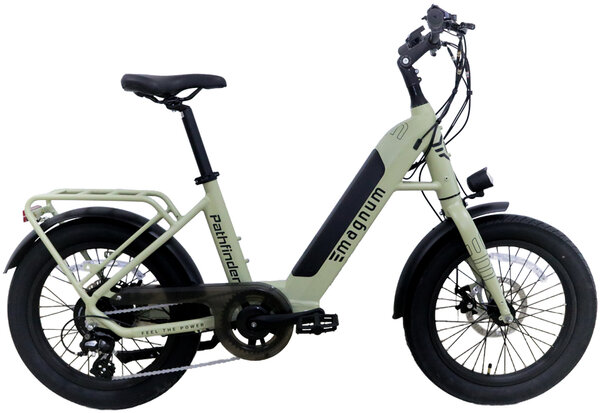

Magnum Bikes Pathfinder 500 Urban Compact ST Fat Tire E-Bike

Magnum Bikes Pathfinder 500 Urban Compact ST Fat Tire E-Bike
Magnum Pathfiner
  • Color: Snow
  • Color: Forrest
  • Color: Grey
$1,499.00 - $1,499.99
$1,899.00 - $1,899.99
Color:
Please select options Unavailable

Details

The Magnum Pathfinder 500
Work hard and play harder! The Magnum Pathfinder 500 is an e-bike that suits your active lifestyle. Whether it's used for recreation, exercise, commuting, or for the pure joy of power-assisted movement, the unisex Magnum Pathfinder 500 with its step-through frame will match your physique and your skills, and exceed your expectations.

48v 500w 13Ah

Motor Brand

Vision In-House

Motor Type

Rear Hub-Drive

Motor Nominal Output

500 Watts

Motor Peak Output

~650 Watts

Battery Brand

LG Cells

Battery Voltage

48 Volts

Battery Ah

13Ah

Battery Wh

624Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

25 Miles (40 Kilometers)

Maximum Range

50 miles (80 Kilometers)

Display Type

Vision LCD Display

Display Readouts

Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed

Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode

Top Speed

25 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated Front And Rear Lights

Frame material

Aluminum Alloy

Frame size

15.75” (40 cm)

Frame Type

Fork Details

Rigid Aluminum Alloy

Gearing details

Shimano 7-Speed

Shifter Details

Shimano 7-Speed

Crank

Aluminum Alloy, 44T, 165mm

Pedals

Wide Plastic Platform with Reflectors

Stem

Adjustable Aluminum Alloy

Brakes

Hydraulic Disc Brakes

Grips

Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle

Saddle

Velo Gel Comfort

Tire Brand

CST Big Boat 20 x 3.0

Wheel size

20"

Fenders

Front and Rear Included

Chain

KMC Z-Chain

Seat Tube

15.75" (40 cm)

Reach

17" (43 cm)

Stand Over Height

16" (40 cm)

Virtual Top Tube Length

24" (61 cm)

Min Saddle Height

20.5" (52 cm)

Max Saddle Height

29.5" (75 cm)

Width

24" (61 cm)

Wheelbase

43" (109 cm)

Length

63.75" (162 cm)

Total Weight

62 lbs (28 kg)

Battery Weight

7.5 lbs (3.4 kg)

Recommended Minimum Rider Height

4’10”

Max Load Capacity

265 lbs. (100 kg)

Videos

Pathfinder 500

See all the great features of the Magnum Pathfinder

Part Numbers

Option UPC Store SKU
Snow 789554755566 210000012413
Forrest 726152302617 210000024452
Grey 745808931780 210000019976
