Magnum Bikes Voyager Commuter e-bike

Magnum Bikes Voyager Commuter e-bike
  • Color: Black with Blue Accents
  • Color: Black with Silver Accents
$2,199.00
Color:
Please select options Unavailable
Sorry, this item is currently not available online. Please check back or call 480-275-5818 for availability.

Details

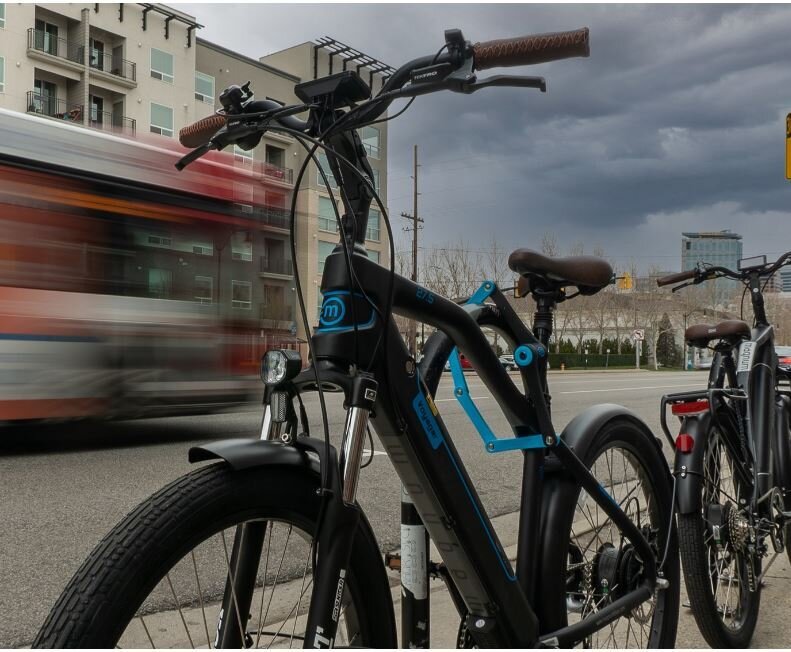

The Magnum Voyager
Hit the road (or trail) in style with the Magnum Voyager! It has a powerful 500W 48V power system and a new fully integrated battery design on its elegant high-step frame with relaxed geometry.

Can be configured to a Class 1, 2, or 3 E-Bike. Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode. Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle.

48v 500/750W 12Ah

THE BATTERY.

The heart of the Magnum Voyager is the integrated, long-range 48V / 12Ah / 546Wh LG battery that powers rides up to 40 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

12Ah

40 Miles (64 Kilometers) Max Range

6 Hours Charge Time

FEEL THE POWER OF THE MOTOR

500W Das-Kit Motor

The powerful 500W German Das-Kit Motor peaks at 750 watts and has 6 modes of pedal assist, for speeds of up to 25 mph with pedal assist. The extra power it produces provides a peppy ride that will climb hills faster and accommodate riders of all sizes.

Motor Brand

Das-Kit

Motor Type

Rear Hub-Drive

Motor Nominal Output

500 Watts

Motor Peak Output

750 Watts

Battery Brand

LG Cells

Battery Voltage

48 Volts

Battery Ah

12Ah

Battery Wh

576Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

6 Hours

Minimum Range

25 Miles (40 Kilometers)

Maximum Range

40 Miles (64 Kilometers)

Display Type

Das-Kit C7, Backlit, Monochrome LCD

Display Readouts

Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage

Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed

25 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated Front Light; Battery-Operated Rear Light (2 AAA batteries)

Frame material

Aluminum Alloy

Frame size

17” (43 cm)

Frame Type

Fork Details

Suntour XCT-ATB 26"

Gearing details

Shimano 8-Speed

Shifter Details

Shimano 8-Speed

Crank

Prowheel, 48T, 165mm

Pedals

Wellgo

Stem

Promax Tool-Free Adjustable

Brakes

Tektro Hydraulic Disc Brakes

Grips

Selle Royal

Saddle

Selle Royal Freeway

Tire Brand

CST 26 x 2.35

Wheel size

26”

Fenders

Front and Rear Included

Chain

KMC

Seat Tube

17” (43 cm)

Reach

16.5” (42 cm)

Stand Over Height

31.5” (80 cm)

Virtual Top Tube Length

24” (61 cm)

Min Saddle Height

23” (58 cm)

Max Saddle Height

29.5” (75 cm)

Width

26” (66 cm)

Wheelbase

42.5” (108 cm)

Length

69.75” (177 cm)

Total Weight

59 lbs (26.75 kg)

Battery Weight

7.5 lbs. (3.4 kg)

Recommended Minimum Rider Height

5’5”

Max Load Capacity

300 lbs. (140 kg)

Part Numbers

Option UPC
Black with Blue Accents 745808932701
Black with Silver Accents 789554755627
