Haro Aeras ST MicroSHIFT

Haro Aeras ST MicroSHIFT
  • Color: Matte Metallic Blue
  • Color: Matte Sage
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available online. Please check back or call 480-275-5818 for availability.

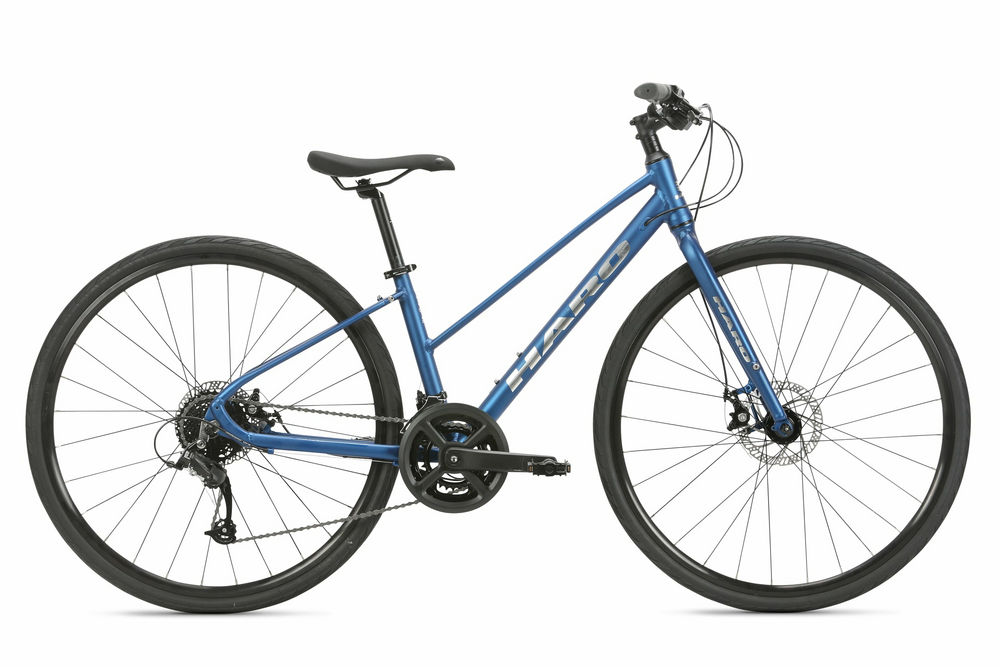

Aeras ST MicroSHIFT from Haro.

Geometry Chart:
SIZEX-Small STSmall ST
A. Seat Tube (C-T)356mm (14") 406mm (16")
B. Top Tube (Effective)530mm (20.9") 541mm (21.3")
C. Head Tube Angle69.5° 70°
D. Seat Tube Angle74° 74°
E. Chainstay Length445mm (17.5") 445mm (17.5")
F. BB Drop60mm (2.4") 60mm (2.4")
G. Wheelbase1043mm (41") 1050mm (41.3")
H. Head Tube Length120mm (4.7") 140mm (5.5")
I. Standover611mm (24") 620mm (24.4")
J. Stack Height533mm (21") 554mm (21.8")
K. Reach377mm (14.8") 382mm (15")
L. Fork Heightmm (") mm (")
M. Fork Offset45mm (1.8") 45mm (1.8")
N. Stem Length75mm 95mm
O. Bar Width620mm 620mm
P. Crank Length170mm 170mm
X-Small ST5' - 5'4" 152.5 - 162.5
Small ST5'3" - 5'7" 160 - 170


Pedals VP, 990S, Nylon body with steel cages, Chromoly axles
Fork Suntour SF20 NEX HLO-DS, 63mm travel, Hydraulic Lockout, Post-mount
Hubs KT-68 alloy 28H, Cassette rear hub, Front & rear quick release
Stem Haro Alloy, 7° rise, 70mm / 90mm / 100mm
Chain KMC Z8.1, 8-speed
Frame 6061-T6 aluminum, Rider-tuned geometry, 68mm threaded BSA bottom bracket shell, Post mount
Tires Kenda Kwick Bitumen, 700 x 38c
Brakes Tektro MD-M280, Mechanical disc, IS 6-bolt rotors, F: 180mm, R: 160mm
Saddle Haro, Dual-sport tuned padding, Weather-resistant cover
Wheels Haro 700c, 19mm inner width, 28h, Alloy double wall, Disc-brake specifc
Headset Haro 1-1/8" threadless Internal, For 50mm OD headtube
Crankset Prowheel TB-CY01, 46/30T, 8-speed, 170 / 175mm
Seatpost Haro Alloy, Micro-adjust, 27.2mm x 350mm, Zero-offset, 2-bolt design
Shifters Microshift TS39-2 & FD-T202, 2 x 8-speed
Handlebars Haro Alloy, 25mm rise, 31.8mm, 9° sweep, 620mm / 640mm
Tape/Grips Haro, Dual-density durometer, Active tuned
Brake Levers Alloy 3-finger
Bottom Bracket Feimin FP-902W, Threaded BSA 68mm BB shell, 123mm spindle, Sealed cartridge
Rear Derailleur Microshift RD-M36L
Accessories & Extras Rack and fender mounts
Cassette/Freewheel Mid-range, CS-M5008 8-Speed 11-34T, ED Black

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Metallic Blue / X-Small / 700c 691840136518 13651
Matte Sage / X-Small / 700c 691840136532 13653
Matte Sage / Small / 700c 691840136549 13654
Matte Metallic Blue / Small / 700c 691840136525 13652
