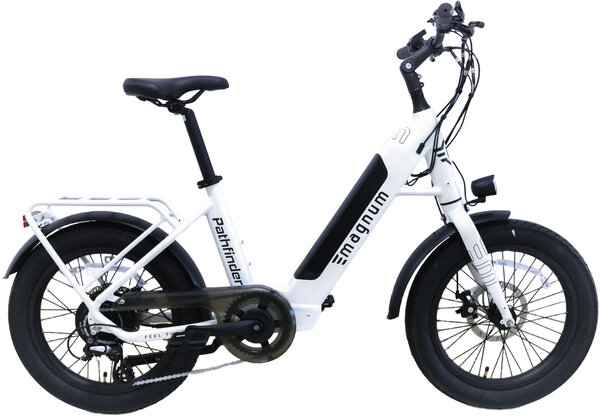

Magnum Bikes Pathfinder Urban Compact ST Fat Tire E-Bike

Magnum Bikes Pathfinder Urban Compact ST Fat Tire E-Bike
Magnum Pathfiner
  • Color: Snow
  • Color: Forrest
  • Color: Ocean
  • Color: Sand
  • Color: Grey
$1,679.99 - $2,099.99
$1,699.00 - $2,099.99
Please select options

Details

The Magnum Pathfinder has a compact frame with a fully integrated battery. Its standout feature in the Magnum lineup is its 20 fat tires. It comes in matte white or grey with blue or orange accents. The power system is 500W, 48V, with a 13Ah battery or the economical 350w, 36v, with 13Ah battery.

Description
Model: Magnum Pathfinder Compact 20 Fat Tire E-bike
Body Position: Upright
Warranty: 1 Year Comprehensive
Max Load: 265lbs

ELECTRONIC DETAILS
Motor Type: Rear Geared Hub Motor
Motor Output: 48v 500w or 36v 350w
Battery Voltage / Amp Hours / Watt Hours: 48v / 13ah /624wh or 36v / 13Ah / 450Wh
Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
Estimated Charge Time: 4-4.5 Hrs
Estimated Min And Max Range: 30 To 50 Miles (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.)
Display Type: Bigstone H102 Display
Display Readouts: Speed (mph or kmh), Frontlight on/off, Assist Level 0-3, Battery Level, Odometer, Trip Distance, Range (estimated remaining mileage)
Drive Modes: Pedal Assist, Twist Throttle
Max Speed: 25mph or 18mph (350w)
Lights: Integrated Front and Rear Light controlled by the display (power on/off)

BICYCLE DETAILS
Total Weight: 50lbs
Battery Weight: 8lbs
Frame Type: Low Step
Fork Details: Fixed Alloy

350W/36V

Motor Brand

Vision In-House

Motor Type

Rear Mounted Geared Hub

Motor Nominal Output

350 Watts

Motor Peak Output

500 Watts

Battery Brand

LG

Battery Voltage

36 Volts

Battery Ah

13Ah

Battery Wh

468 Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

20 Miles (32 Kilometers)

Maximum Range

40 Miles (64 Kilometers)

Display Type

Vision LCD Display

Display Readouts

Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed

Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode

Top Speed

Up to 25 mph (40 km) with pedal assist, up to 20 mph with throttle only

Lights

Integrated Front And Rear Lights
500W/48V

Motor Brand

Vision In-House

Motor Type

Rear Hub-Drive

Motor Nominal Output

500 Watts

Motor Peak Output

~650 Watts

Battery Brand

LG Cells

Battery Voltage

48 Volts

Battery Ah

13Ah

Battery Wh

624Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

25 Miles (40 Kilometers)

Maximum Range

50 miles (80 Kilometers)

Display Type

Vision LCD Display

Display Readouts

Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed

Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode

Top Speed

25 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated Front And Rear Lights

Videos

Pathfinder 500

See all the great features of the Magnum Pathfinder

Part Numbers

Option MPN Store SKU
Snow / 350 Watt 210000014008 210000014008
Snow / 500 Watt 210000012413 210000012413
Forrest / 350 Watt 210000014002 210000014002
Forrest / 500 Watt 210000013954 210000013954
Ocean / 350 Watt 210000013955 210000013955
Ocean / 500 Watt 210000014006 210000014006
Sand / 350 Watt 210000013941 210000013941
Sand / 500 Watt 210000014004 210000014004
Grey / 350 Watt
Grey / 500 Watt 210000019976 210000019976
