Name: Expand 5 Folding Urban Cruiser E-Bike BK (Demo)
Price: 999.00 USD
Availability: InStock

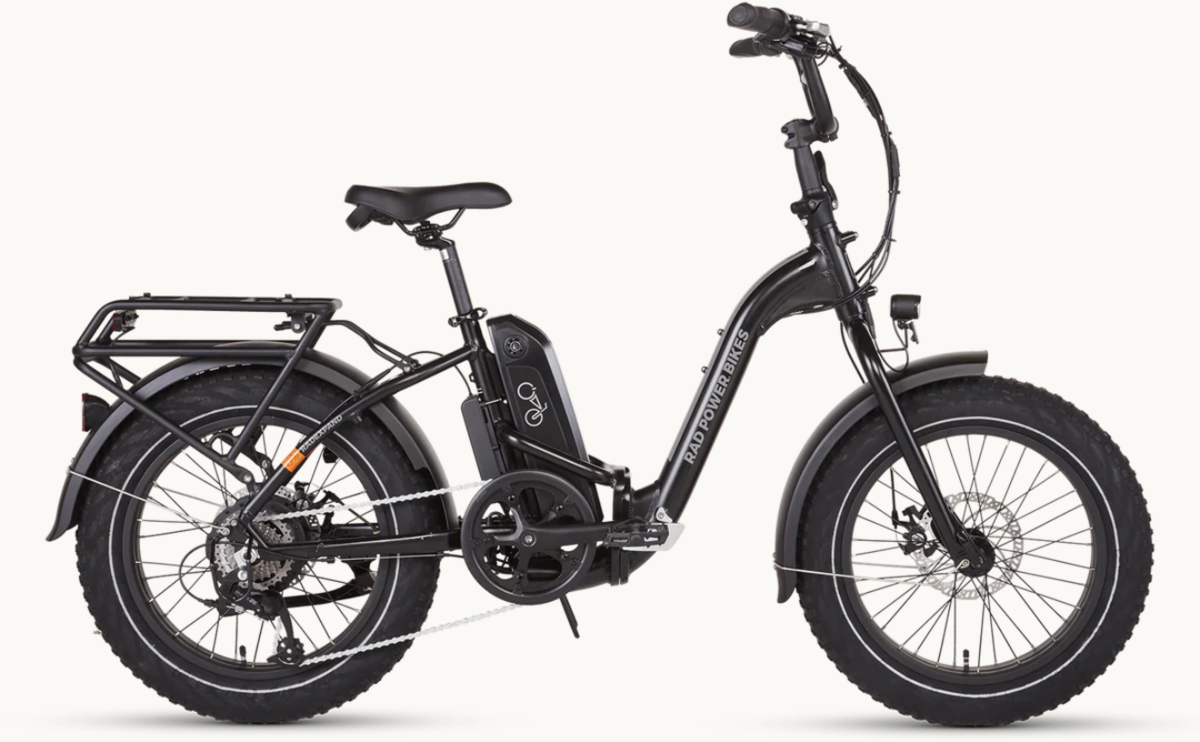

Rad Power Bikes Expand 5 Folding Urban Cruiser E-Bike BK (Demo)

$999.00

$1,599.00

Details

Fold in to store. Fold out to explore.
Our fan-favorite folding ebike has fat tires to tackle adventures and a small profile for easy storage. Featuring a step-thru frame, you can customize your ride with adjustable handlebars, seven speeds, and four levels of pedal-assist.

Specs

MAKE:

Rad Power Bikes

MODEL:

RadExpand 5

PRICE:

$1,599

BODY POSITION:

Upright

SUGGESTED USE:

Neighborhood, Urban, Commuting, Travel, Sand and Snow

ELECTRIC BIKE CLASS:

Throttle on Demand (Class 2)

Learn more about Ebike classes

WARRANTY:

1 Year Comprehensive

AVAILABILITY:

United States, Canada, Europe

MODEL YEAR:

2022

TOTAL WEIGHT:

62.5 lbs (28.34 kg)

BATTERY WEIGHT:

7.7 lbs (3.49 kg)

MOTOR WEIGHT:

9.6 lbs (4.35 kg)

FRAME MATERIAL:

6061 Aluminum Alloy

FRAME SIZES:

14.25 in (36.19 cm)

GEOMETRY MEASUREMENTS:

14.25" Seat Tube Length, 22.5" Simulated Top Tube Length, 18" Reach, 16" Stand Over Height, 29" Minimum Saddle Height, 36" Maximum Saddle Height, 27.5" Width, 69.5" Length, 44.5" Wheelbase, Folded: 28" x 22" x 41"

FRAME TYPES:

Step-Thru, Folding

FRAME COLORS:

Satin Black with Gray and Orange Accents, Satin White with Gray and Orange Accents

FRAME FORK DETAILS:

Rad Power Bikes Custom Rigid Steel, 135mm Hub Spacing, 9mm Axle with Release Skewer Skewer

FRAME REAR DETAILS:

175mm Hub Spacing, 12mm Threaded Slotted Axle with 10mm Flats and 1.25mm Thread Pitch, Steel Torque Arm, 18mm Nuts

ATTACHMENT POINTS:

Fender Mounts, Front Rack Mounts, Rear Rack Mounts, Bottle Mount

GEARING DETAILS:

7 Speed 1x7 microSHIFT RD-M26 Derailleur, 14-32 Tooth Freewheel

SHIFTER DETAILS:

microSHIFT TS71-7R Triggers on Right (One-Way High Lever, Four Shift Low Lever)

CRANKS:

164mm Square Taper Spindle, Prowheel Forged Aluminum Alloy Crank Arms, 165mm Length, 48 Tooth Chainring with Prowheel Plastic Guide, 5 Bolt 104mm BCD

PEDALS:

Wellgo Plastic Platform with Reflectors, CrMo Axle, Standard 9/16 x 20 TPI

HEADSET:

Semi-Integrated, Sealed Cartridge, 1-1/8" Straight

STEM:

Aluminum Alloy, Folding Steer Post, 170mm Base Height with 7mm Spacer, 45mm Stem Length, 3º Rise, 31.8mm Clamp

HANDLEBAR:

Aluminum Alloy, High-Rise, 176mm Rise, 690mm Length, 20º Backsweep

BRAKE DETAILS:

Radius Brand Mechanical Disc with 180mm Rotors, Four-Finger Levers with Rubberized Edges and Motor Inhibitors with Brake Light Activation

GRIPS:

Ergonomic, Rubber, Non-Locking

SADDLE:

Rad Power Bikes Branded with Lifting Handle, Brown

SEAT POST:

HL, Aluminum Alloy, Single Bolt Clamp

SEAT POST LENGTH:

390 mm

SEAT POST DIAMETER:

27.2 mm

RIMS:

Aluminum Alloy, Double Wall, 60mm Inner Width, 36 Hole

SPOKES:

Stainless Steel, 13 Gauge, Black with Nipples

TIRE BRAND:

CST BFT, 20" x 4.0" (100-406)

WHEEL SIZES:

20 in (50.8cm)

TIRE DETAILS:

15 to 30 PSI, 1.0 to 2.1 BAR, e-Bike Rated, Aramid Puncture Resistant Liner, Reflective Sidewall Stripe

TUBE DETAILS:

Schrader Valve

ACCESSORIES:

Rear-Mount Kickstand, Steel Derailleur Guard, Rad Power Bikes Integrated LED Headlight (50 LUX, Focused Beam), Integrated LED Rear Light (Solid, Bright Brake Activation), Clear Plastic Sticker Slap Guard, Plastic Fenders (110mm Width), Bolt-On Rear Rack (27kg 59.5lb Max Load, 19mm Tubing Diameter, Bungee Loops, Yepp! Child Seat Window), Velcro Cinch Strap to Secure When Folded, Optional Front Rack, Optional Small Basket, Optional Large Basket, Optional Platform, Optional Small Pannier, Optional SR Suntour NCX Suspension Seat Post, Optional Phone Mount, Optional Small Basket Bag, Optional Large Basket Bag, Optional Small Insulated Delivery Bag, Optional Large Insulated Delivery Bag, Optional Yepp! Maxi Child Seat, Optional ABUS Folding Lock, Optional Wellgo Colored Pedals, Optional LCD Display Panel with USB Port

OTHER:

Locking Removable Seat Tube-Mounted Battery Pack, 1.1lb 2 Amp Charger, Stainless Steel Torque Arm, 275lb Maximum Weight Rating, KMC Z7 Chain with 124 Links

MOTOR BRAND:

Rad Power Bikes Custom Manufactured

MOTOR TYPE:

Rear-Mounted Geared Hub

Learn more about Ebike motors

MOTOR NOMINAL OUTPUT:

750 watts

BATTERY BRAND:

18650 35E 3500mAH 13S4P Configuration

BATTERY VOLTAGE:

48 volts

BATTERY AMP HOURS:

14 ah

BATTERY WATT HOURS:

672 wh

BATTERY CHEMISTRY:

Lithium NMC

CHARGE TIME:

6.5 hours

ESTIMATED MIN RANGE:

25 miles (40 km)

ESTIMATED MAX RANGE:

45 miles (72 km)

DISPLAY TYPE:

Rad Power Bikes Branded King Meter LED, Fixed, Adjustable-Angle, 11 Orange LED Lights, Buttons: +, -, Lights, On/Off, (Hold - for Walk Mode)

READOUTS:

Battery Charge Level Indicator (5 Dots), Assist Level (0-4), Lights Indicator (On/Off)

DISPLAY ACCESSORIES:

Throttle On Off Switch for Canadian Market

DRIVE MODE:

Cadence Sensing Pedal Assist, Twist Throttle (14 Pulse Low-Profile Cadence Sensor)

TOP SPEED:

20 mph (32 kph)(25km/h

Part Numbers

MPN	Store SKU
210000024277	210000024277
