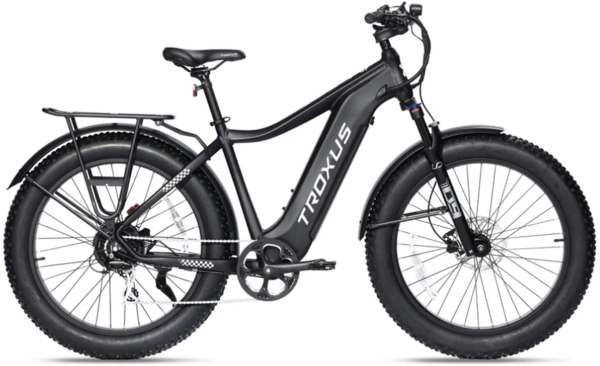

Troxus Explorer Urban Fat-Tire E-Bike

Troxus Explorer Urban Fat-Tire E-Bike

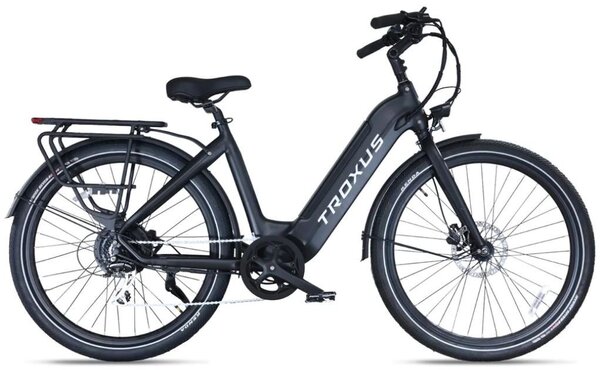

  • Red Step-Through
  • Black Step-Over
  • Black Step-Through
  • Blue Step-Over
$2,099.00 - $2,099.99
Please select options Unavailable

Details

Explorer - Your Adventure Partner
Life is meant to be explored. Troxus Explorer series e-bikes equipped with durable fat tires and a sturdy aluminum alloy frame provide more stability and traction over rough terrain like snow, sand, and mud. And with the 48V 20A high-power SAMSUNG battery, Explorer has enough power to ride and explore further.

Avalable in Red and black step-through and blue and black step-over.

SPECIFICATION

MOTOR
Bafang 48V 750W Hub motor
THROTTLE
Throttle on demand-throttle from a complete stop
DISPLAY
L401 LCD
SPEED
Up to 20MPH on throttle and up to 28MPH on Pedal Assist
BATTERY
Removable Internal Lithium-ion 48V, 20Ah (960Wh)with Samsung cells
SENSORS
Speed Sensor
PEDAL ASSIST
5 Levels
CHARGER
54.6V 3A
RANGE
30-62 Miles
FRAME
6061 Aluminium Alloy
WEIGHT
Net Weight: 83.78LB
Gross Weight: 103.62LB
PEDALS
9/16" Alloy Platform
FORK
Aluminum Alloy, Suspension Fork
WEIGHT LIMIT
Standard Weight Limit 275LB
Maximum Weight Limit 353LB
KICKSTAND
Included, Rear Mount
BOTTOM BRACKET
Square Taper, Sealed
CRANKSET
170mm w/46T
REAR DERAILLEUR
Shimano 8 speed
CASSETTE
12-32T, 8 Speed Cassette
SHIFT LEVER
8 Speed
BRAKES
Tektro Hydraulic Disc Brake, 180mm Rotors
CHAIN
KMC Z8.3
RIM
Front: Single Wall Aluminum 36h
Rear: Double Wall Aluminum 36h
SPOKES
Front wheel: black stainless 13 Gauge
Rear wheel: black stainless 12 Gauge
TUBES
Butyl Rubber
HUBS
Nutted Front and Rear
TIRES
26" x 4.0" Tires
SADDLE
Troxus
SEATPOST
Forged Alloy, 30.9*350mm, 2 Bolt Clamp
STEM
Threadless, 28.6mm, 7 Degree Rise
SEAT CLAMP
Quick Release
HANDLEBARS
Aluminum 31.8mm, 700mm
HEADSET
GINEYEA Sealed Bearing Headset
GRIPS
Ergonomic Comfort

Part Numbers

Option MPN Store SKU
Red / Step-Through 210000022533 210000022533
Black / Step-Over 210000022529 210000022529
Black / Step-Through 210000022531 210000022531
Blue / Step-Over
